18 Degree Step Angle Micro Linear Stepper Motor for Industrial Application

Product Description:

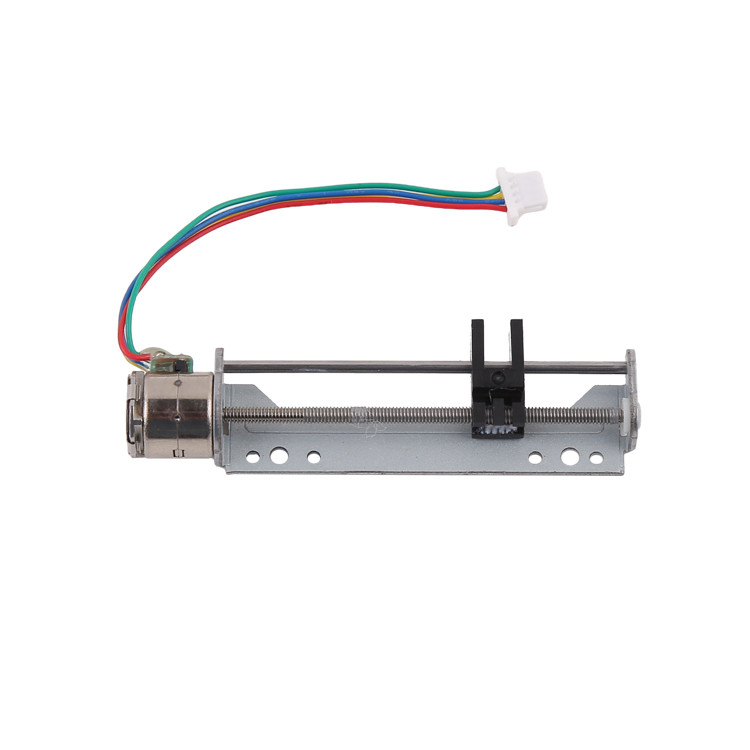

This VSM10152 10mm Micro Stepper Motor is a stepper motor with slider, designed to provide precision linear motion. It is equipped with a pull-in torque of 3.5 Gf.cm at 480 Pps, 2-phase excitation, and supports CW/CCW rotation. This stepper motor with slider is also known as a slider linear stepping motor, and it boasts a combination of highly accurate position control, low speed stability, and higher torque than traditional stepper motors. With its wide range of applications and high performance, this motor is ideal for use in various industrial and commercial settings.

Features:

• Product Name: Slider Stepper Motor
• Pull-Out Torque: 4.5 Gf.cm At 480 Pps
• Step Angle(degrees): 18 Degree
• Max. Starting Frequency: 1200 Pps,No Load
• Resistance: 10Ω±10%
• Pull-In Torque: 3.5 Gf.cm At 480 Pps
• Special Feature: Micro Linear Stepper Motor with Slider

Technical Parameters:

Applications:

Vic-Tech VSM10152 Slider Stepper Motor is a small size stepper motor with micro linear stepper motor features. It is certified with RoHS, has an insulation resistance of 50 MΩ (DC 100 V), and the current per phase is 200 MA /phase. This product has a minimum order quantity of 1Unit and price of $3~$8/Unit. The weight of the motor is 10g and it is designed with a 2 Phase Excitation method. OEM & ODM service is available.

The packaging details of Vic-Tech VSM10152 Slider Stepper Motor includes selling units of single item plastic box inner and outer paper box, with single carton packing, 100 - 1000 pieces per box. Delivery time of this product is 15-30 work days and payment terms include T/T, Paypal, Credit card. The supply ability of the motor is 100000 pc/Month.

Vic-Tech VSM10152 Slider Stepper Motor is suitable for a wide variety of applications including home appliance, automotive, electronic, medical, industrial control, and more. It is highly reliable, precise, and cost-effective.

Customization:

Customized services for Vic-Tech Slider Stepper Motor (Model Number: VSM10152) are now available at our store. This product is manufactured in China and is RoHS certified. It has a minimum order quantity of 1 unit, with a price range of $3 - $8 per unit. We offer a variety of packaging options to suit your needs, including single item plastic box inner, outer paper box, single carton packing, and 100 - 1000 pieces per box. Delivery time is 15-30 work days after deposit. We accept payment via T/T, Paypal, and Credit card. Our supply ability is 100000 pc/Month. This product has 2 phases, Class E insulation for coils, and bipolar drive mode. Its resistance is 10Ω ± 10%, and pull-in torque is 3.5 Gf.cm at 480 Pps. This product is suitable for micro linear stepper motor, miniature linear stepper motor, and stepper motor screw slider applications.
