Motor Size: |
8mm |
Step Angle: |
18 Degree |
Motor Type: |
Stepper Motor With Lead Screw |
Lead Pitch: |
M1.7pitch 0.3mm |
Driving Voltage: |
4.6 VDC |
Coil Resistance: |
40 Ohm (can Customization) |
Driving Method: |
2-2 Phase |
Screw Stroke: |
6mm |
Motor Size: |
8mm |
Step Angle: |
18 Degree |
Motor Type: |
Stepper Motor With Lead Screw |
Lead Pitch: |
M1.7pitch 0.3mm |
Driving Voltage: |
4.6 VDC |
Coil Resistance: |
40 Ohm (can Customization) |
Driving Method: |
2-2 Phase |
Screw Stroke: |
6mm |
VSM0632 is an accurate miniature pedal motor. The output shaft with a screw M1.7 screw is 0.3mm. Passing through the screws, the screw rod supports the turning of the screw to the thrust.
The basic step of the motor is 9 degrees, and the motor runs 40 steps a week to achieve the purpose of precise control.
The actuator is used to satisfy the driver.
Because the output shaft of this motor is the screw, during the turning of the screw, the screw drives the slider back and forth. This is convenient to provide actions such as forward and backward. In addition, the step motor can accurately control speed, rotation, etc., which also determines the movement speed of the slider, and the movement position is accurate and controllable.
Because of its small size, high accuracy, easy to control and other excellent characteristics, the micro -step transmission motor is widely used for cameras, optical instruments, lens, precision medical equipment, automatic door locks and other fields.
FPC's motor input part, but can be changed to connecting thread, PCB and other forms according to customer needs.
You can change the installation bracket according to the customer's requirements.
Main Application
1) vending machine
2) Optical instruments
3) Precision medical devices
4) beauty equipment
Other precise control application
Model No. | VSM0652 |
Motor type | Linear stepper motor |
Phase No. | 2 phases |
Step angle | 18°/step |
Phase resistance | 40 Ω±10% |
Excitation method | 2-2 bipolar drive |
Rated voltage | 4.6V DC |
Stroke | 6mm |
Pull-out thrust | 36g min.(5V 200mA,300PPS-400PPS) |
Max starting frequency |
1100pps min.(AT 4.6 V DC) |
Max slewing frequency | 2000pps min.(AT 4.6 V DC) |
INSULATION CLASS | CLASS E FOR COILS |
INSULATION STRENGTH | 300 V AC FOR ONE SECOND |
INSULATION RESISTENCE | 1.0 MΩ (DC 100 V) |
OPERATING TEMPERATURE RANGE | -10 ~+60 ℃ |
OEM & ODM SERVICE | AVAILABLE |
Drawing of 6mm plastic slider stepper motor with 6mm stroke:
TYPE of WIRE CONNECT:
Motor input method with Pin type
, FPC, PCB, Lead wire etc. These can be customized according to customer needs.
Product display for 6 mm plastic slider stepper motor:

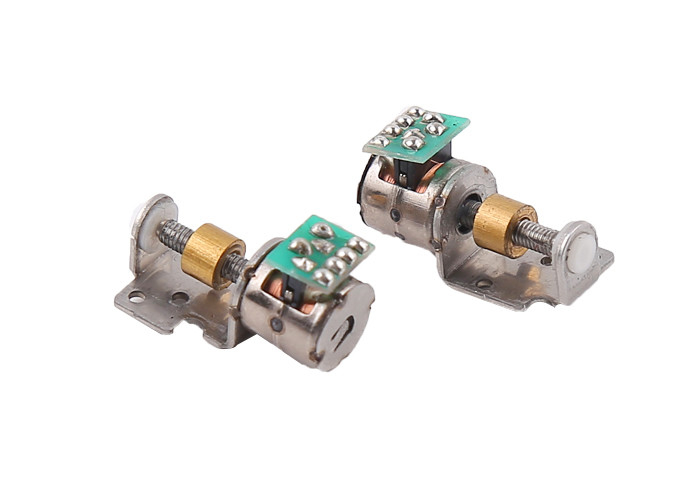

6mm mini linear motor 4.6V DC micro slider screw stepper motor of Camera Lens
1. The outer diameter of the motor can be selected in different sizes such as 6 8 10 15 20 25mm according to the customer's use environment and space strength.
2. The outlet position can be freely selected within a 360-degree range to meet the installation requirements in the best state. At the same time, the connector can choose lead, PCB, FPC bare pin.
2. According to customer requirements, the effective stroke of the motor can be customized within a certain range, mainly considering the diameter and length of the lead screw.
Usually the maximum length of M2 screws can be 50mm, M3 screws can be 100mm, and M4 screws can be 100mm. 150mm can also be achieved. Small motors use lead screws with too large diameters, which consume a lot of power. Therefore, customers should consider comprehensively when selecting motors.
4. The material of the slider is generally plastic, which is easy to form and economical.
When customers have special use environment and requirements, the slider can also use metal parts.
Of course, the cost will be relatively high, which is determined according to the customer's requirements for the shape and size of the slider.
