Product Description:
Slider Stepper Motor is a kind of micro linear stepper motor which is also known as slider screw stepper motor. It features a small weight of 10g, and offers OEM & ODM service. With Max. Response Frequency of 1000 Pps and no load, the Operating Temperature Range of the motor is -20~+70 ℃, while its Pull-Out Torque is 4.5 Gf.cm At 480 Pps.
Features:
- Product Name: Slider Stepper Motor
- Step Angle (degrees): 18 Degree
- Phase: 2
- Step Angle: 18 Degree
- Max. Response Frequency: 1000 Pps, No Load
- OEM & ODM SERVICE: AVAILABLE
- Camera Slider Stepper Motor: YES
- Miniature Linear Stepper Motor: YES
- Mini Slider Screw Stepper Motor: YES
Technical Parameters:
| Product Properties |
Specification |
| Insulation Class |
Class E For Coils |
| Excitation Method |
2 Phase Excitation |
| Model |
VSM10152 |
| Max. Starting Frequency |
1200 Pps, No Load |
| Coil Resistance |
10 Ω ±7% |
| Step Angle |
18 Degree |
| Pull-In Torque |
3.5 Gf.cm At 480 Pps |
| Drive Mode |
Bipolar Drive |
| Pull-Out Torque |
4.5 Gf.cm At 480 Pps |
| Rotation |
CW/CCW |
Applications:

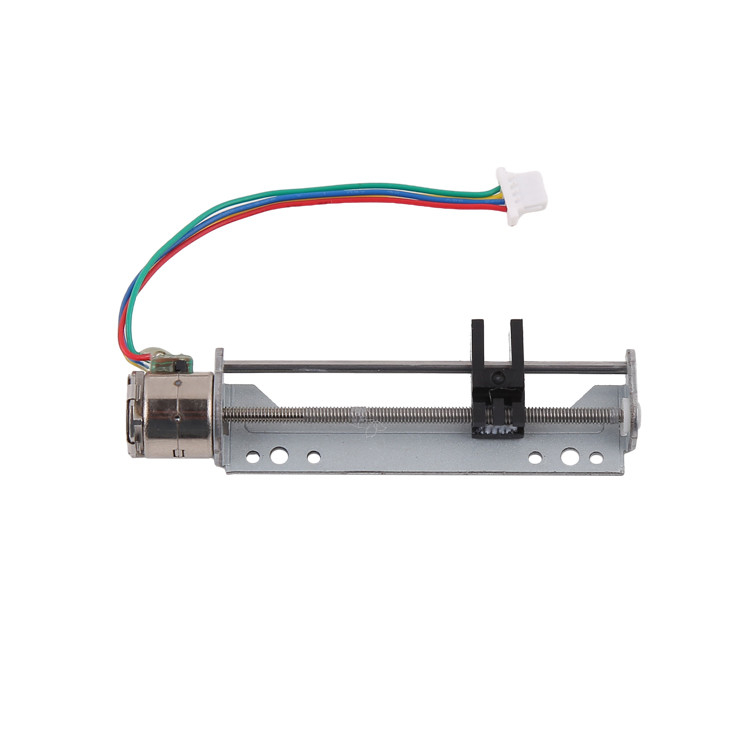

Vic-Tech VSM10152 Slider Stepper Motor
Vic-Tech provides a range of custom stepper motor solutions, such as the VSM10152 slider linear stepping motor. This mini slider screw stepper motor is RoHS certified, and has a minimum order quantity of 1 unit. Prices range from $3 to $8 per unit, and orders are delivered within 15-30 working days. Payment can be made via T/T, Paypal, or credit card. This motor has a maximum response frequency of 1000 pps, and is capable of CW/CCW rotation. It has a coil resistance of 10 Ω±7%, and a voltage of 3.3V. The operating temperature range is -20°C to +70°C, and the maximum supply capacity is 100,000 pcs/month. The stepper motor comes with a plastic box inner and an outer paper box package. It is sold in boxes of 100-1000 pieces, and the delivery lead time is 30 days after deposit.
Customization:
Customized Service of Slider Stepper Motor
Brand Name: Vic-Tech
Model Number: VSM10152
Place of Origin: China
Certification: RoHS
Minimum Order Quantity: 1Unit
Price: $3~$8/Unit
Packaging Details: Selling Units: Single item plastic box inner, outer paper box. Package: single carton packing, 100 - 1000 pieces per box. Lead Time: 30 Days After Deposit.
Delivery Time: 15-30 work days
Payment Terms: T/T, Paypal, Credit card
Supply Ability: 100000 pc/Month
Pull-Out Torque: 4.5 Gf.cm At 480 Pps
Current Per Phase: 200 MA /phase
Insulation Class: Class E For Coils
Insulation Strength: 300 V AC For One Second
Operating Temperature Range: -20~+70 ℃
Our Slider Stepper Motor includes the following features:
- Stepper motor screw slider
- Micro linear stepper motor
- Linear screw stepper motor
Support and Services:
At Slider Stepper Motor, we provide technical support and service for our products. Our expert team of technicians is available to assist with any questions or issues you may have about our products. We offer both online and on-site technical support to ensure you get the help you need when you need it. We also provide training and education on our products, so you can get the most out of them. Our customer service team is always available to answer any questions you may have and to ensure you have a positive experience with our products.
