5V Micro Precision Linear Actuator 2 Phase 10mm Screw Subdivision OEM ODM

Product Details

Place of Origin: China

Brand Name: V-motor

Certification: RoHS

Model Number: SM10 Linear stepper motor

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: US$3~7.5

Packaging Details: Out box is paper, for mass production, can use pallet for easy shipping

Delivery Time: 15 days

Payment Terms: L/C, T/T

Supply Ability: 100000/month

Get Best Price
Highlight:

5V Micro Precision Linear Actuator

,

Micro Precision Linear Actuator 2 Phase

,

Precision Linear Motor OEM

Motor Type:
Linear Stepper Motor
Step Angle:
18 Degree
Thrus Force:
160 G
Driving Voltage:
5V DC
Current / Phase:
280 MA
Screw Stroke:
9 Mm
Phase:
2 Phase
Resistance:
18±7% Ohm /Phase
Motor Type:
Linear Stepper Motor
Step Angle:
18 Degree
Thrus Force:
160 G
Driving Voltage:
5V DC
Current / Phase:
280 MA
Screw Stroke:
9 Mm
Phase:
2 Phase
Resistance:
18±7% Ohm /Phase
5V Micro Precision Linear Actuator 2 Phase 10mm Screw Subdivision OEM ODM

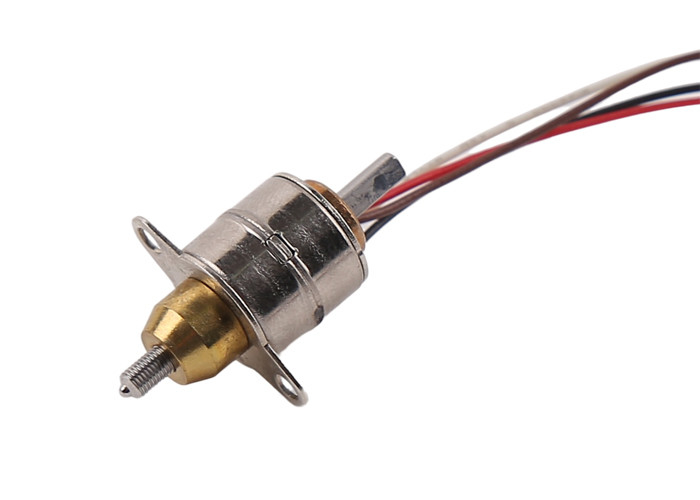

5v linear stepper motor micro 10mm screw subdivision stepper motor5V Micro Precision Linear Actuator 2 Phase 10mm Screw Subdivision OEM ODM 0



SM10 linear motor is a special product of our company. It is a stepper motor with lead screw with anti-rotation bracket. A rotor with a nut, when the rotor is turned clockwise or counterclockwise, the lead screw will advance or retreat.
It converts the rotation of the motor into linear motion through the relative motion of the inner rotor and the screw.
The motor step angle is 18 degrees, the lead spacing is 1mm, and the length of the connecting line can be customized according to customer requirements.

Mainly used in valve control, automatic buttons, medical equipment, textile machinery, printers, robots and other related fields.



Working temperature: -40℃-60℃



Motor direction: CW & CCW




Stepper motor parameter data sheet



Product name

 Linear stepper motor

Model SM10 Linear stepper motor
Resistance 18±7% ohm /Phase
NO.of phase 2 Phase
Voltage 5 V DC
Pull out thrust More Than 280g AT500PPS
Step angle 18 ° /Phase
Inductance 6.5REF (mH)
Max starting frequency Motor than 900PPS
Axial height 9mm
Insalution class Class e for coils
Lead wrie UL 1071 AWG30
OEM & ODM Service AVAILABLE



Motor out drawing:



5V Micro Precision Linear Actuator 2 Phase 10mm Screw Subdivision OEM ODM 1





Product display:

5V DC captive shaft linear actuator lead screw

5V Micro Precision Linear Actuator 2 Phase 10mm Screw Subdivision OEM ODM 2

5V Micro Precision Linear Actuator 2 Phase 10mm Screw Subdivision OEM ODM 3



5V Micro Precision Linear Actuator 2 Phase 10mm Screw Subdivision OEM ODM 4

Changzhou Vic-Tech Motor Techology Ltd.  is a professional manufacturer and scientific research institution specializing in the development of brushless motors, overall solutions for motor applications, and motor processing and manufacturing. The company is located in Changzhou City, Jiangsu Province, "the capital of micro-motors in China". With beautiful scenery and convenient transportation, it is only 1 km away from the expressway, 2 km away from the railway station and 15 km away from the airport. Changzhou City in Jiangsu Province is located between the two international metropolises of Shanghai and Nanjing, only 100 kilometers away from the two cities. Convenient logistics and timely information provide the conditions for our efficient and satisfactory service. With decades of experience in motor research and development, it has its own development team, as well as experienced professional engineers and electrical experts. With the ability to design new products, we can provide corresponding solutions according to the specific requirements of customers (including mechanical structure, drive control, motor parameters, etc.) Magnetic motors, micro motors and DC motors have all passed ISO9001:2008 international quality system certification. We have enough capacity to handle your large order.



The company's team has more than ten years of experience in stepper motor design, development and manufacturing. It can also realize product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!



Packaging and Shipping Information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.



5V Micro Precision Linear Actuator 2 Phase 10mm Screw Subdivision OEM ODM 5


Packing: single carton/box packing, sample packing box size: 28*17*16cm
Packaging according to quantity
Shipping time:
DHL: 5~7 working days;
UPS: 5~7 working days;
TNT: 5~7 working days;
FedEx: 7~9 working days;
EMS: 12~15 working days;
China Post: Depends on which country it is sent to;
Sea: depends on which country the ship goes to



5V Micro Precision Linear Actuator 2 Phase 10mm Screw Subdivision OEM ODM 6
