Product Details
Place of Origin: China
Brand Name: Vic-Tech
Certification: ROHS
Model Number: VSM36-24s-0508-002
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 7~40usd
Packaging Details: EPE inner packaging, paper carton outer packaging,.For bulk products can be palletized for easy delivery and proper protection of products
Delivery Time: 15days
Payment Terms: L/C, T/T
Supply Ability: 100000 pcs per month
Type: |
Micro Linear Stepper Motor |
Phase: |
2 Phase |
Step Angle(degrees): |
15 Degree |
Voltage: |
5 V |
Frame Size: |
Dia 36mm |
Thrust(N): |
60-80 N |
Stroke: |
85mm |
Motor Structure: |
Through Going Shaft |
Type: |
Micro Linear Stepper Motor |
Phase: |
2 Phase |
Step Angle(degrees): |
15 Degree |
Voltage: |
5 V |
Frame Size: |
Dia 36mm |
Thrust(N): |
60-80 N |
Stroke: |
85mm |
Motor Structure: |
Through Going Shaft |
This type of motor is a through-shaft 36mm permanent magnet step linear motor. In addition to the 36mm permanent magnet linear motor, there are 20mm and 25mm permanent magnet linear motors. It has the common parameter characteristics of stepper motors. For example: basic size, step angle, number of phases, resistance, maximum self-start frequency and other indicators.
In terms of internal structure, the center of the rotor is made of an integrated nut, and the motor shaft is made of a lead screw. When the motor rotates, the output shaft will follow the rotation, and the rotation direction will move back and forth, so it is called a linear motor.
In addition to through-shaft linear motors, we also have fixed-shaft and external drive linear motors for customers to choose from. Of course, if customers have any questions during the selection process, they can get in touch with our service staff, and we will do our best to assist customers.
36mm linear stepper motor parameter sheet:
| PRODUCT NAME | 36mm linear stepper motor |
| MODEL | VSM36L-24S-0508-002 |
| VOLTAGE | 5 V |
|
POWER |
5.6W |
| PHASE CURRENT | 560mA |
| PHASE RESISTCE | 9(±10%) Ohm |
| PHASE INDUCTANCE | 8(±20%) mH/1KHz |
| STER ANGLE | 15° |
| SCREW LEAD | 1.2192mm |
| STEP TRAVEL | 0.0508mm |
| LINEAR TRAVEL | 60-80 N/300PPS |
| INSULATION CLASS | CLASS E FOR COILS |
| INSULATION STRENGTH | 3.0mA (max.) |
| INSULATION RESISTENCE | 1 MΩ (DC 100 V) |
| OPERATING TEMPERATURE RANGE | -20~+55 ℃ |
| STORANG TEMP RANGE | -40~+100 ℃ |
| OEM & ODM SERVICE | AVAILABLE |
Product display:

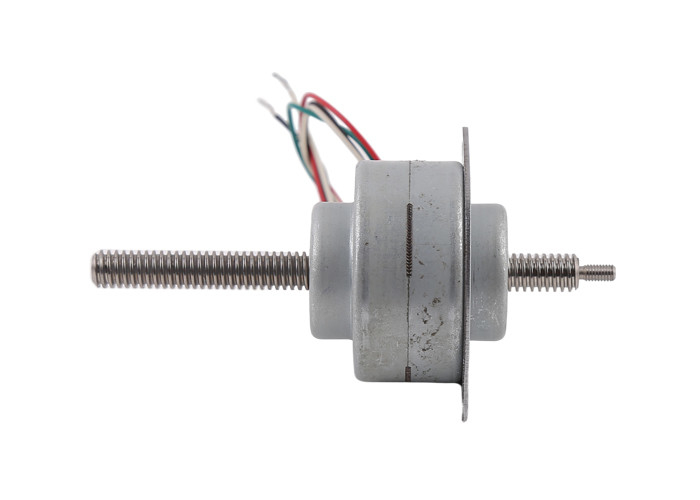

36mm linear stepper motor:
The main purpose:
Mainly used in valve control, automatic buttons, medical equipment, textile machines, robots and other related fields.
Our team has more than 10 years of experience in stepper motor design, development and production, so we can realize more products.
Develop and assist design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!
