Product Details
Place of Origin: China
Brand Name: VIC-TECH
Certification: RoHS
Model Number: VIRIS126-D4
Payment & Shipping Terms
Minimum Order Quantity: 1Unit
Price: $8~$17/Unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 10~30 days after receiving sample payment
Payment Terms: MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability: 100000 Units/year
Motor Type: |
IRIS Linear Stepper Motor |
Motor Diameter: |
10 Mm |
Step Angle: |
18° |
Coil Resistance: |
40Ω/phase |
Phase No.: |
2 Phases |
Usage/application: |
IRIS Zoom / Focus Control For Camera |
Motor Type: |
IRIS Linear Stepper Motor |
Motor Diameter: |
10 Mm |
Step Angle: |
18° |
Coil Resistance: |
40Ω/phase |
Phase No.: |
2 Phases |
Usage/application: |
IRIS Zoom / Focus Control For Camera |
IRIS focusing control DSLR camera linear stepper motor with FPC
Description:
This is our IRIS stepper motor, specifically designed lens focus control for Digital Single Lens Reflex camera.
This is not only four motors, this product is a combination of stepper motors with a big FPC, hall censor, PI (grating), chip resistor and others.
On top of that, this motor comes with electromagnetic valve function.
If your project is related to digital single lens reflex camera, and you want to purchase focusing control motors for your camera, please feel free to contact us.
Parameters:
| Model No. | VIRIS126-D4 |
| Motor size | 10mm stepper motor |
| Step angle | 18 degrees |
| Coil resistance | 40Ω/phase |
| Phase No. | 2 phase(Bipolar) |
| Application | IRIS zoom/focus control for DSLR camera |
| FPC pins | 26 pins |
Other conponents:
| Product | Supplier | Model No. |
| Hall sensor | Xuhuacheng | HG-166A |
| PI(grating) | ROHM | RPI222 |
| Chip resistor | ROHM | MCR03EZPJ331 |
| FPC | N/A | N/A |
Design drawing:

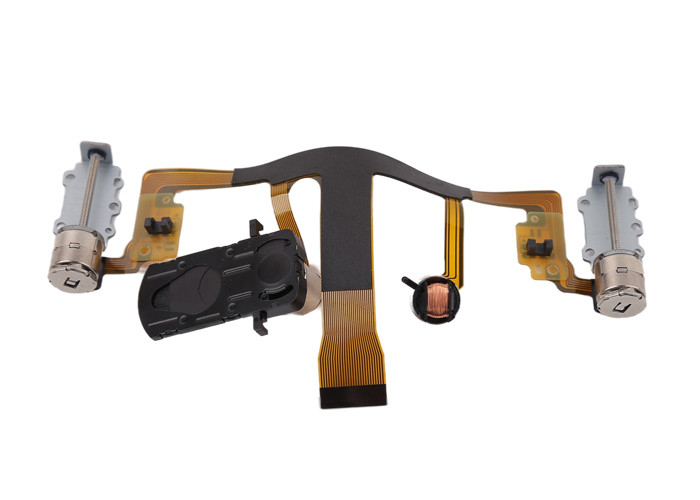

Product display:
About linear stepper motor with slider:
Our slider motor is a full set of assembly including motor + lead screw + bracket + slider.
Motor’s step angle is generally 18°/step, which means 20 steps for each turn.
When motor rotates one turn, slider moves one lead.
For single start lead screws: pitch =lead.
So the step length is (step length means linear movement slider travels, when the stepper motor take exactly one step):
Lead screw lead/steps of each rotation
For example if lead screw is M2*0.4P (0.4mm pitch regular M2 lead screw), step angle of the motor is 18°, step length of this motor is 0.4mm/20=0.02mm/step.
Also, lead screw length is customizable, and we also need to adjust bracket’s design, if you customize lead screw length.
Application of stepper motors:
Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.
Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.
Advantage of stepper motors:
Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.
Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.
1. Precise control achievable, programmable
2. Without electromagnetic interference & electrical sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life
Packaging and Shipping information:
Samples are packed with foam sponge inside paper box.
For mass production, products are packed in paper carton.
For sea shipping (Mass production), cartons are packed on pallet.
Shipping time:
By express(DHL/ UPS/ Fedex/ TNT): 5~12 days
By 4PX express: 10~20 days
Sea shipping: 40~60 days (depends on different countries)
