Motor Type: |
Permanent Magnet DC Motor |
Motor Size: |
10 Mm Diameter |
Step Angle: |
18 Degrees |
Resistance: |
40Ω/phase |
Rated Voltage: |
5V DC |
Gear Modulus: |
0.2 |
Motor Type: |
Permanent Magnet DC Motor |
Motor Size: |
10 Mm Diameter |
Step Angle: |
18 Degrees |
Resistance: |
40Ω/phase |
Rated Voltage: |
5V DC |
Gear Modulus: |
0.2 |

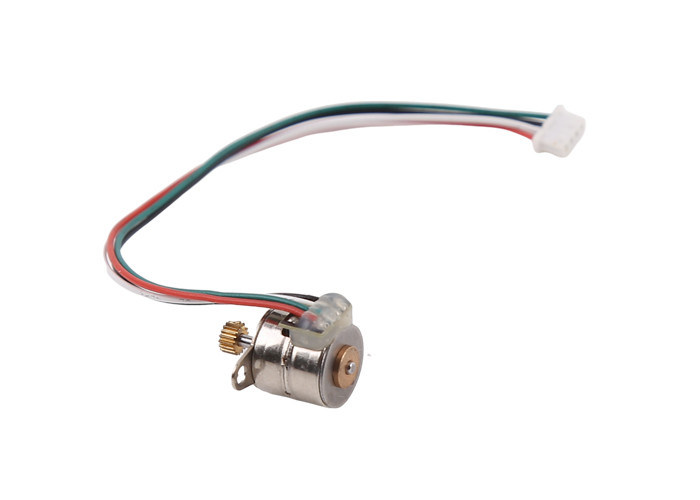

VSM1070 5V DC 10mm diameter permanent magnet micro stepper motor with gear
Description:
This VSM1070 motor is 10mm with gear on shaft.
Here is gear’s parameter:
| Modulus | 0.2 |
| Pressure angle | 20 |
| Teeth number | 17 |
| Reference cir cutle | Φ3.4 |
| Addendum cir cutle | Φ3.75 |
| Modification coefficient | -0.125 |
As shown in parameter table, this is a 0.2 modulus gear.
It’s developed for a specific project.
If customer’s do not want the gear, we can remove it and sell it with round shaft (without gear)
Motor parameters:
| Model No. | VSM1070 |
| Rated voltage | 5V DC |
| Step angle | 18°/step |
| Phase number | 2 phases |
| Coil resistance | 40Ω/step |
| Pull out torque | About 5g*cm |
| Connector type | Molex 51021-0400 (1.25mm pitch) |
Design drawing:
Product display:
Application of stepper motors:
Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.
Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.
Advantage of stepper motors:
Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.
Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.
1. Precise control achievable, programmable
2. Without electromagnetic interference & electrical sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life
