Product Details
Place of Origin: China
Brand Name: V-motor
Certification: RoHS
Model Number: 20BY45-67
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Price: US$1.85~4
Packaging Details: with carton
Delivery Time: 3~15 days
Payment Terms: L/C, D/P
Supply Ability: 100000/month
Phase: |
2 |
Type: |
Permanent Magnet Stepper Motor |
Step Angle(degrees): |
18° |
Usage: |
Printer,Industral,security System |
Frame Size: |
Dia.20MMXL19.1mm |
Voltage: |
24V |
Current / Phase: |
0.5A |
Weight: |
20g |
Phase: |
2 |
Type: |
Permanent Magnet Stepper Motor |
Step Angle(degrees): |
18° |
Usage: |
Printer,Industral,security System |
Frame Size: |
Dia.20MMXL19.1mm |
Voltage: |
24V |
Current / Phase: |
0.5A |
Weight: |
20g |

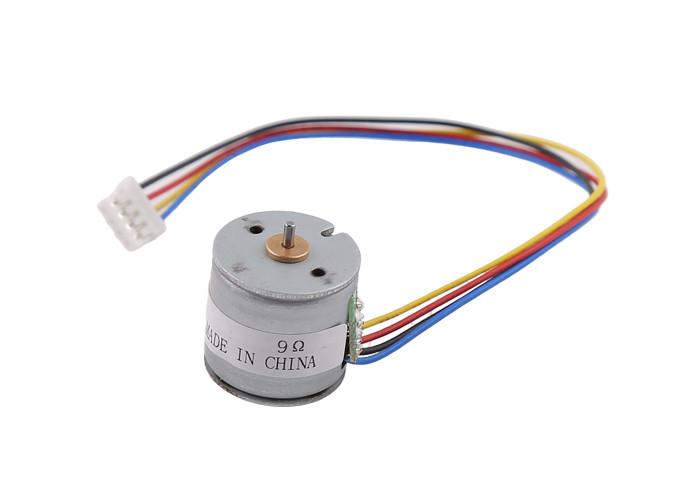

20BY45-67 20mm PM stepper motor
The basic step angle of this motor is 18 degrees, that is, 20 steps per revolution, plus the deceleration effect of the gear box, the final motor angle resolution can reach 0.05~6 degrees, which can be used for various needs
Precise control over the rotational position of the field.
This is a micro stepping motor with a diameter of 20mm, a torque of 60gf.cm, and a maximum speed of 3000rpm.
Therefore, this product can be used where precise position control is required. Generally used in medical equipment, printers, automation equipment, robots, etc.
This product is mainly used in printers, fax machines, copiers, camera equipment, monitoring PTZs, etc.
The output part can use gears, pulleys, V-grooves and other methods.
Its mounting plate and the shape of the outlet can be adjusted according to customer needs!
PM stepper motor parameters:
| PRODUCT NAME | 20 stepper motor |
| MODEL | 20BY45-67 |
| RESISTANCE | 200 Ω±10% |
| VOITAGE | 24VDC |
| Step angle | 18°±7% |
| Detent Torque | ≤83g.cm |
| OEM & ODM SERVICE | AVAILABLE |
PM stepper motor outdrawing:
Product display:
