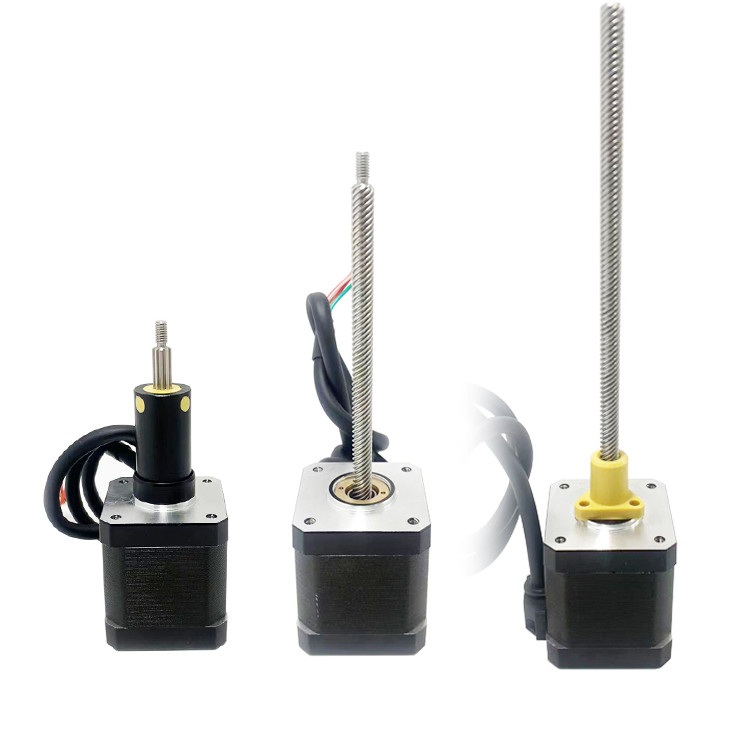

42mm Hybrid Stepping Motor 1.8° Step Angle 80K Max. Temperature Rise

Product Description:

Hybrid Stepper Motors are stepping motors which combine the advantages of both variable reluctance (VR) and permanent magnet (PM) technologies. They are highly reliable, low-cost, and provide consistent step angle accuracy. Hybrid Stepper Motors feature a step angle of 1.8°, four lead wires, and a dielectric strength of 1mA Max. @ 500V, 1KHz, 1Sec. The temperature rise of these motors is 80K Max. and they come in a variety of inductance options of 1.8/2.8/4.6 mH. Hybrid stepping motors are widely used in a variety of industries due to their high performance and cost-effectiveness.

Features:

• Product Name: Hybrid Stepper Motor
• Inductance (mH): 1.8/2.8/4.6
• Resistance (Ohms): 0.8/1.8/2.2
• Temperature Rise: 80K Max.
• Voltage (V): 2/2.6/3.3
• Motor Length (mm): 34/48/46
• High Quality Hybrid Step Motor
• High Performance Hybrid Stepping Motor
• Reliable Hybrid Stepper Motor

Technical Parameters:

Applications:

Vic-Tech VSM42HSM Hybrid Stepper Motors are a type of micro stepping motors with excellent performance. The model number is VSM42HSM, the place of origin is China and it is RoHS certified. The minimum order quantity is 1Unit and the price ranges from $24 to $68/Unit. The samples are packed with paper box and the mass production products are packed with standard corrugated carton. The delivery time is 15-30 work days and the payment terms are T/T, Paypal, and Credit card. The supply ability is 100000 pc/Month. The insulation resistance is 100MΩ Min. @500Vdc. The current is 1.5/2.5A, the voltage is 2/2.6/3.3V and the step angle is 1.8°. It is a great choice for applications like Hybrid Step Motors, Hybrid Motors Stepping, Ball screw stepper motors, Hybrid Stepper Motors, and Micro Stepping Motors.

Customization:

The Hybrid Stepper Motor from Vic-Tech is a great choice for your robotic projects and automation. The model VSM42HSM is certified with RoHS and is made in China. You can order a minimum of 1Unit and the price range is from $24 to $68/Unit. The samples are packed with paper box and the mass production products are packed with standard corrugated carton. The delivery time is 15-30 work days. Payment terms include T/T, Paypal, and Credit Card. The supply ability is up to 100000 pc/Month. This hybrid motor stepping has a resistance of 0.8/1.8/2.2 and lead wires of 4. The inductance is 1.8/2.8/4.6 and the temperature rise is 80K Max.

Packing and Shipping:

Hybrid stepper motors are packaged and shipped using the following procedures:

• The motor is carefully inspected for any visible signs of damage or defects.
• The motor is then securely packaged in an appropriate box with suitable cushioning and packing materials, to ensure that it will not be damaged during shipment.
• The box is then sealed and labeled with the appropriate shipping information.
• The package is then shipped via an appropriate shipping carrier.
