Product Details
Place of Origin: china
Brand Name: Vic-Tech
Certification: RoHS
Model Number: SM08-GB10
Payment & Shipping Terms
Minimum Order Quantity: 1Unit
Price: $3.5~$7/Unit
Packaging Details: Samples are packed with paper box, and mass production products are packed with standard corrugated carton.
Delivery Time: 10~20 days after the sample is paid
Payment Terms: T/T, Paypal, Credit card
Supply Ability: 100000 pc/Month
Motor Size: |
8 Mm Diameter |
Model No: |
SM08-GB10 |
Phase No: |
2 Phases (bipolar) |
Motor Type: |
Stepper Motor+ Gearbox |
Connector Type: |
Molex 51021-0400 (1.25mm Pitch) |
Gearbox Type: |
GB10 (8*10) |
Resistance: |
40Ω/phase |
Output Shaft: |
D Shaft/lead Screw Shaft |
Motor Size: |
8 Mm Diameter |
Model No: |
SM08-GB10 |
Phase No: |
2 Phases (bipolar) |
Motor Type: |
Stepper Motor+ Gearbox |
Connector Type: |
Molex 51021-0400 (1.25mm Pitch) |
Gearbox Type: |
GB10 (8*10) |
Resistance: |
40Ω/phase |
Output Shaft: |
D Shaft/lead Screw Shaft |
Geared Stepper Motor is a high torque stepper motor with gearbox, which has a 2 phase stepper motor of 8 mm diameter and a gearbox type of GB10 (8*10). It has a resistance of 40Ω/phase and a step angle of 18°/gear ratio, providing enhanced performance, accuracy, and high torque. It is perfect for applications that require precise and reliable motion control.
Geared Stepper Motor is ideal for applications that require high torque output. It combines the accuracy and reliability of a stepper motor with the high torque of a gearbox. This makes it an excellent choice for applications where precise and reliable motion control is required.
Geared Stepper Motor is an excellent choice for applications that require high torque output. It offers high torque output, accuracy, reliability, and precise motion control. It is perfect for applications that require precise and reliable motion control. It is a great choice for applications that require high torque output and precise and reliable motion control.
Gearbox Parameters:
| Gear ratio | 20:1 | 50:1 | 100:1 | 250:1 |
| Precise ratio | 20.313 | 50.312 | 99.531 | 249.943 |
| Tooth number | 14 | 14 | 14 | 14 |
| Gear levels | 3 | 5 | 5 | 5 |
| Efficiency | 71% | 58% | 58% | 58% |
Design drawing:

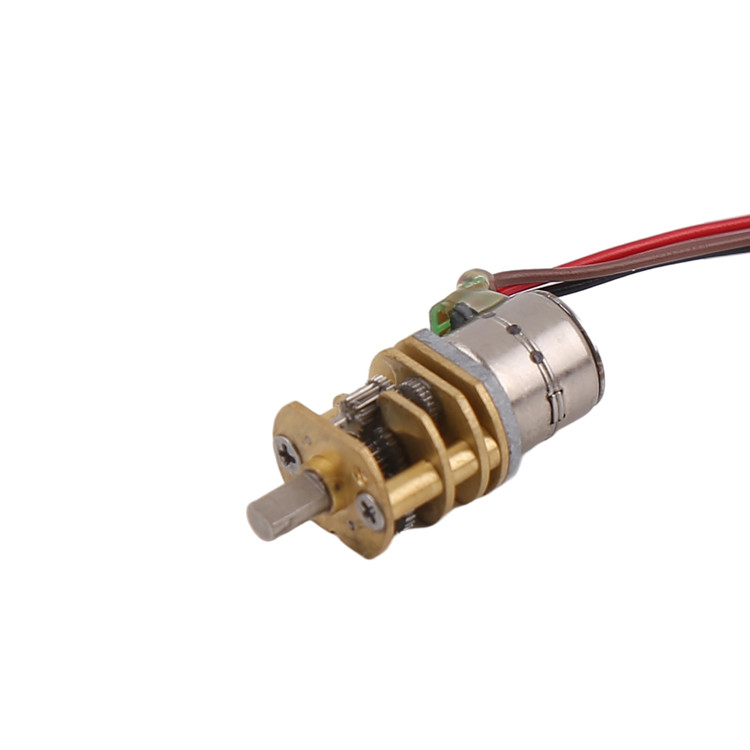

Product display:
| Attribute | Value |
|---|---|
| Phase No | 2 Phases (bipolar) |
| Motor Size | 8 Mm Diameter |
| Resistance | 40Ω/phase |
| Model No | SM08-GB10 |
| Gearbox Type | GB10 (8*10) |
| Output shaft | D Shaft/lead Screw Shaft |
| Step Angle | 18°/gear Ratio |
| Connector type | Molex 51021-0400 (1.25mm Pitch) |
| Motor Type | Stepper Motor+ Gearbox |
| Keywords | Small Geared Stepper Motor, Gear Reduced Stepper Motor, Mini Geared Stepper Motor |
The Vic-Tech SM08-GB10 is a high torque stepper motor with gearbox, featuring a 2 phase stepper motor design. This gearbox stepper motor is RoHS certified, and has a minimum order of 1Unit. The price is $3.5~$7/Unit, and samples are packed in a paper box, while mass production products are packed in a standard corrugated carton. The delivery time is 10~20 days after the sample is paid, and payment terms include T/T, Paypal, Credit card. The supply ability of the Vic-Tech SM08-GB10 is 100000 pc/Month, and it has a 2 Phases (bipolar) output shaft, a D Shaft/lead Screw Shaft, and a resistance of 40Ω/phase. The model number of this stepper motor is SM08-GB10, and it has a 8 Mm Diameter motor size.
Geared Stepper Motor
Brand Name: Vic-Tech
Model Number: SM08-GB10
Place of Origin: China
Certification: RoHS
Minimum Order Quantity: 1Unit
Price: $3.5~$7/Unit
Packaging Details: Samples are packed with paper box, and mass production products are packed with standard corrugated carton.
Delivery Time: 10~20 days after the sample is paid
Payment Terms: T/T, Paypal, Credit card
Supply Ability: 100000 pc/Month
Model No: SM08-GB10
Motor Type: Stepper Motor+ Gearbox
Connector type: Molex 51021-0400 (1.25mm Pitch)
Output shaft: D Shaft/lead Screw Shaft
Gearbox Type: GB10 (8*10)
Vic-Tech geared stepper motor is a high torque gearbox stepper motor that is designed specifically for applications where high levels of torque are required. It is a stepper motor with gear box that provides increased torque while maintaining accuracy and reliability. The gearbox stepper motor features a Molex 51021-0400 (1.25mm Pitch) connector, a D shaft/lead screw shaft, and a GB10 (8*10) gearbox type. It is RoHS certified and each unit is priced from $3.5 to $7.
Our team of experienced technicians are available to provide technical support and service for Geared Stepper Motors. We offer a wide range of services to ensure that your motor is functioning as optimally as possible. Our services include:
Our technicians have the expertise and experience to provide superior technical support and service for Geared Stepper Motors. Contact us today to discuss how we can help you get the most out of your motor.
Samples are packed with foam sponge inside paper box.
For mass production, products are packed in paper carton.
For sea shipping (Mass production), cartons are packed on pallet.
Shipping time:
By express(DHL/ UPS/ Fedex/ TNT): 5~12 days
By 4PX express: 10~20 days
Sea shipping: 40~60 days (depends on different countries)
Q: What is the brand name of the Geared Stepper Motor?
A: The brand name of the Geared Stepper Motor is Vic-Tech.
Q: What is the model number of the Geared Stepper Motor?
A: The model number of the Geared Stepper Motor is SM08-GB10.
Q: Where is the Geared Stepper Motor manufactured?
A: The Geared Stepper Motor is manufactured in China.
Q: Is the Geared Stepper Motor certified?
A: Yes, the Geared Stepper Motor is certified with RoHS.
Q: How many Geared Stepper Motors can be purchased?
A: The minimum order quantity for the Geared Stepper Motor is 1 Unit.
