Product Details
Place of Origin: China
Brand Name: Vic-Tech
Certification: RoHS
Model Number: SM35-048L
Payment & Shipping Terms
Minimum Order Quantity: 1Unit
Price: $5~$10/Unit
Packaging Details: Samples are packed with paper box, and mass production products are packed with standard corrugated carton.
Delivery Time: 10~20 days after the sample is paid
Payment Terms: T/T, Paypal, Credit card
Supply Ability: 100000 pc/Month
Motor Type: |
Permanent Magnet Motor+gearbox |
Motor Diameter: |
35 Mm |
Gearbox Ratio: |
30:1 |
Step Angle: |
7.5°/30 |
Phase Number: |
2 (bipolar) |
Coil Resistance: |
30Ω/phase |
Motor Type: |
Permanent Magnet Motor+gearbox |
Motor Diameter: |
35 Mm |
Gearbox Ratio: |
30:1 |
Step Angle: |
7.5°/30 |
Phase Number: |
2 (bipolar) |
Coil Resistance: |
30Ω/phase |

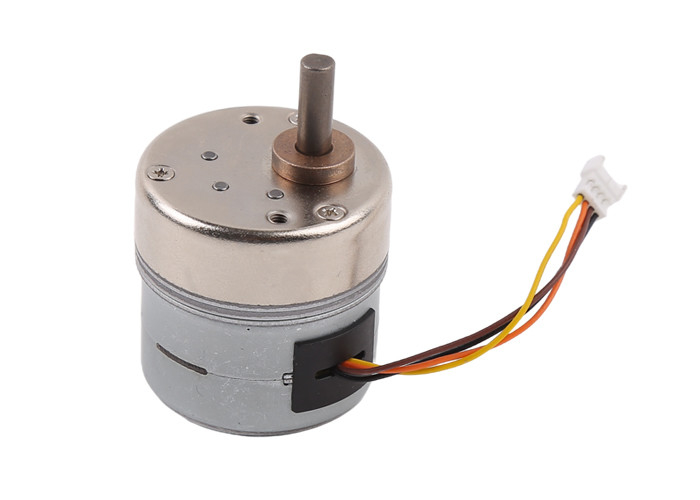

High precision 35mm diameter permanent geared reducer magnet stepper motor
Description:
This is a 35mm permanent magnet motor with a gearbox.
Motor’s output torque and speed is related to motor’s gear ratio.
The gear ratio for this current model is 30:1.
The motor is commonly used on medical equipment and electrical locks.
You are free to customize motor’s output shaft, lead wire types and connector type.
Lead time will be longer, it might cause extra custom fee if the motor is customized.
Motor Parameters:
| Motor type | PM motor + gearbox |
| Model No. | SM35-048L |
| Diameter | 35mm |
| Phase No. | 2 phases |
| Step angle | 7.5°/30 |
| Gear ratio | 30:1 |
| Resistance | 30 |
| Current | 400mA/phase |
Design drawing:
Product display:
Application of stepper motors:
Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.
Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.
Advantage of stepper motors:
Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.
Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.
1. Precise control achievable, programmable
2. Without electromagnetic interference & electrical sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life
Stepper motors are widely used among all industries.
