12mm Small DC Gear Motor

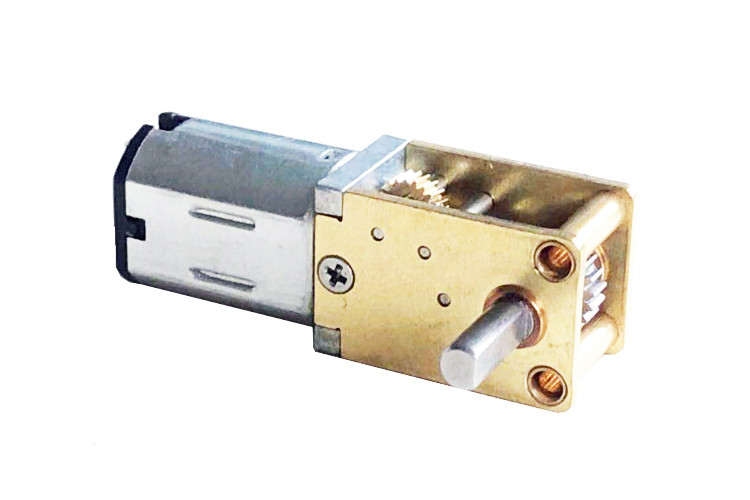

12mm Small DC Gear Motor N20 micro DC brushed motor 3V-12V horizontal gear reducer for shared bicycle smart lock

The motor is made of precious metal brushed DC motor and precision metal reducer. Worm gear size optional solutions, gear reduction ratios are: 1:21 1:42 1:118 1:236 1:302 1:399 1:515 1:603 1:798 1:1030, according to your speed and torque Requires selection of the right motor for the application

N20 motor outer diameter is 12, flat 10, motor length is 15mm (gearbox can also be adapted to N10 N30 050 motor), gear box length is 18mm, the output shaft of the motor has a conventional production shaft diameter of 3mm, D2.5mm, and the length of the output shaft can be adjusted according to Customized according to your installation needs, you can also customize matching spur gears and bevel gears according to your installation needs

Due to its mature technology, low price and simple drive control, DC motors are widely used in cameras, copiers, door locks, optical drives, precision instruments, cameras and other fields.

Our gearboxes are processed and assembled by imported machine tools to ensure that the accuracy of each gear is higher than other manufacturers in the same industry, so the gearbox is stable in transmission, low in noise, high in efficiency, reliable in structure, long in life and quality.

N20 motor parameter data sheet

Motor drawing:

N20 motor torque and speed curve:

this is a typical motor character curve,when change the driving voltage, or change the motor winding parameters, the motor will have a different character,this curve for referance

Product display:

Our team has more than 10 years of stepper motor design, development and production manufature experience, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

our company:

Changzhou Vic-Tech Motor Techology Ltd. is a professional manufacturers and scientific research institution, dedicated in brushless motor development, motor application overall solutions, and motor processing and manufacturing. Our company is located in ‘City of Chinese Micro Motor’ Changzhou, Jiangsu Province. With beautiful scenery and convenient traffic, only 1 km away from expressway, 2 km away from railway station, 15 km away from airport. Changzhou is between two cosmopolises, Shanghai and Nanjing, only 100km away from both cities. Convenient logistics and timely information provide conditions for our high efficient and satisfying service. Our company has experience of researching and developing motor over sereval decades, and we have our own developing team with experienced professional engineers and electric experts. With capacity to design new products, provide ralted solutions based on customers’ specific requirements (including mechanical structure, drive control, motor parameters etc.) At the same time, we have 4 manufacturer in Shenzhen, Changzhou and Dongguan to produce stepper motors, permanent-magnet motors, micro motors, and DC motors, and all of them have passed ISO9001:2008 international quality system authentication. We have enough capability for your big orders.

Packing And Shipping Information

Packaging: single carton packing, 600 pieces per box.

Shipping time:

DHL: 3-5 working days ；

UPS: 5-7 working days；

TNT: 5-7 working days；

FedEx: 7-9 working days；

EMS: 12-15 working days；

China Post: Depends on ship to which country；

Sea: Depends on ship to which country

SPECIAL IMPORTANT NOTES!!!

The components of the basic construction (see follow picture)of a DC brush motor include the stator, rotor, brushes and commutator. The interaction of the stator and rotor magnetic fields drives the motor to rotate.

Therefore, when this type of motor starts and runs, sparks are generated at the brush part, and it cannot be used in special occasions.

Please pay attention when selecting it. In addition, the relative movement of the brush and the commutator is easy to wear, so the life of the DC brush motor with ordinary structure is generally not very long, generally 200~2000 hours, and it is carefully selected in places with strict life requirements.
